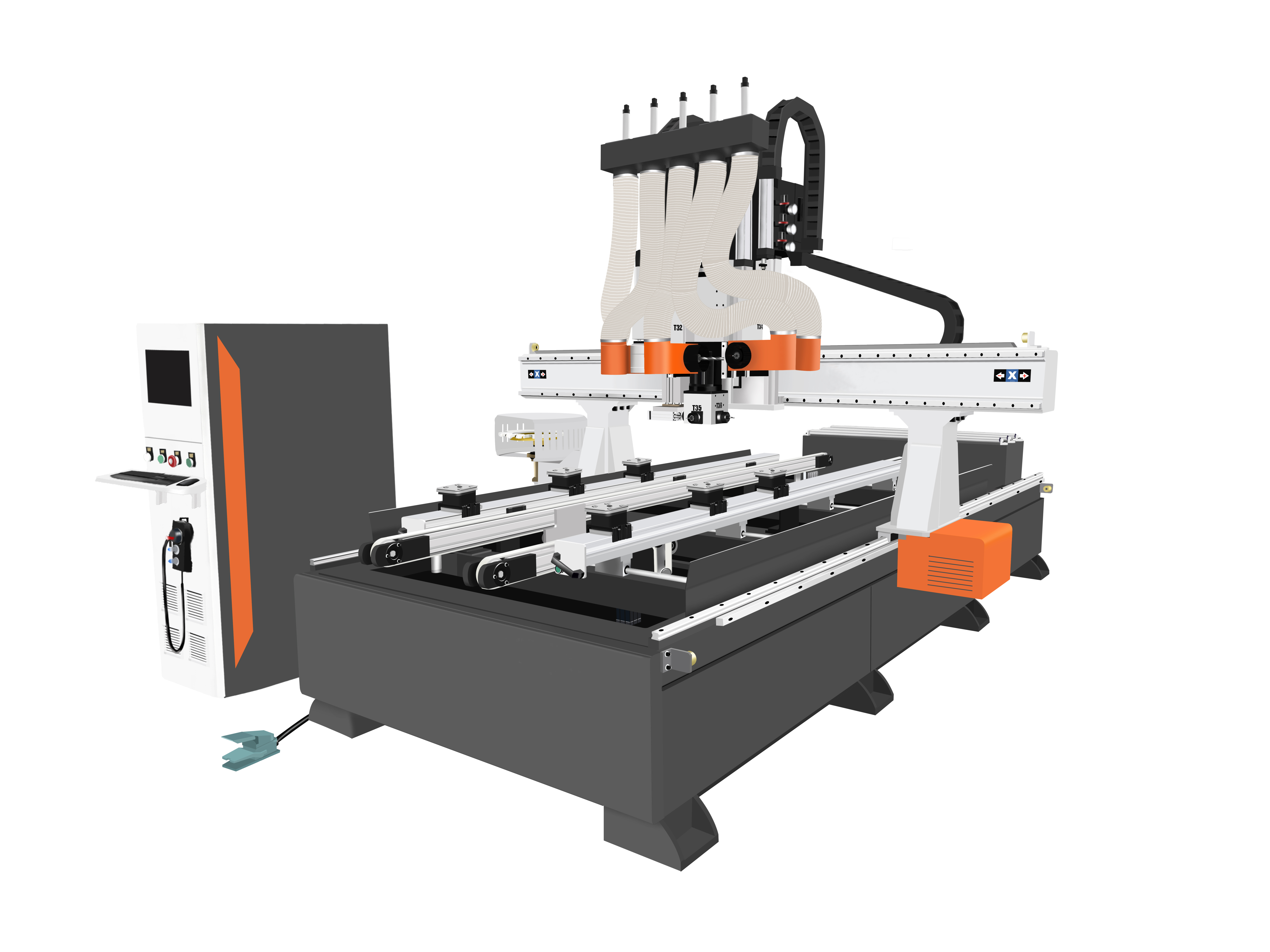

XK1330-24H
FASTCNC
XK1330-24H
※Syntec FC60WA Control system
※China CC Brand 9.0kw *1,double milling 6kw spindle*2,4 side milling 4.0 kw spindle*1
※Heavy duty metal welding
※Vacuum table & T Slot table
※Servo motor and driver
※Japan SHIMPO Reducer
※Original Taiwan TBI ball screw
※Original Taiwan CSK30 square rails
※Fuling Brand Inverter
※France Schneider electric parts
※Professional PTP table with German SCHMALZ Vacuum pads 6pcs
XK 1330-24H CNC Wood door Machine Application industry
This model is a CNC wood engraving machine with a linear type tool magazine,and it can greatly improve the production efficiency. That is why the ATC CNC machine is so popular among the customers. Moreover, this machine use imported components, which ensures a longer using life of the machine, Thereby reducing the purchase cost of your follow-up maintenance. If you have a processing need for mass production, ATC CNC router will be a good ideas.
-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, win
dow processing video game cabinets and panels,computer table and Plate furniture auxiliary processing.
XK 1330-24H CNC Wood door Machine configuration and parameters
Control system | Taiwan Syntec FC60WA control system |
Spindle | China CC brand 9.0kw air cooling,ER32,speed 6000-24000rpm/min |
Double milling 6kw spindle*2 | |
Four Side milling 4.0 kw spindle*1 | |
Tool Magazine | Disk type tool magazine with 16 Pcs ISO 30 tool holder |
Machine body and gantry | Heavy duty metal welding ,Quenching and sandblasting,Twice painting |
Table | Professional PTP table with German SCHMALZ Vacuum pads 6pcs |
Location Pins | 2 location pins( X axis)+3 location pins (Y axis) |
Driving system | Leadshine 1500w AC Servo motor and driver |
X and Y Axis structure | 2.0M helical JMd rack and Japan SHIMPO reducer |
Z Axis structure | Original Taiwan TBI ball screw |
X,Y and Z Axis square rails | Taiwan CSK brand 30 Square rails |
Inverter | Fuling brand 11.0kw ,7.5kw and 5.5kw |
Electrical parts | France Schneider and CHINT brand |
Limit Switch | Omron brand |
Machine Cable | Highly flexible shielded cable |
Oil Lubrication | Automatic oil lubrication with Aluniumn oil pipe |
Machine working size | X Axis-1300mm,Y Axis -3000mm,Z Axis-200mm |
Machine size | Length-4600mm,Width-3000mm,Height 2000mm |
Machine Max. Travelling Speed | 75m/min |
Machine Max. Working Speed | 15m/min |
Machine Voltage | 380/220V,3 Phase,50/60HZ |
Machine Weight | 2500KG |
Machine size(W/L/H) | 3127*4520*2437mm | Four output spindle power3# | 4.0kw |
Range X/Y/Z (X/Y/Z) | 2160*3254*324mm | Four output spindle speed3# | 2850r/min |
Traveling speed | 60m/min | Disk Type tool magazine | 16 pcs/ |
Working speed | 20m/min | Disk type tool magazine motor power | 750w |
Max sheet Length | 2900mm | System | Syntec 60WA |
Max sheet width | 1300mm | Motor and driver | 1500w Leadshine*4 |
ATC Spindle power | 9.0kw CC ATC | SCHMALZ Vacuum pads size | 140*115*100mm |
ATC Spindle speed | 24000rpm/min | Inverter | 11.0kw/7.5kw/5.5kw |
Horizontal spindle one power1# | 6.0kw | Dust collector pipe diameter | Φ150/100mm |
Horizontal spindle one speed1# | 18000rpm/min | Voltage | 380V3Ph50HZ |
Horizontal spindle two power2# | 6.0kw | Total power | 32KW |
Horizontal spindle two speed2# | 18000rpm/min | Machine weight | 2500KG |
Conveyor’s motor | 180w |
