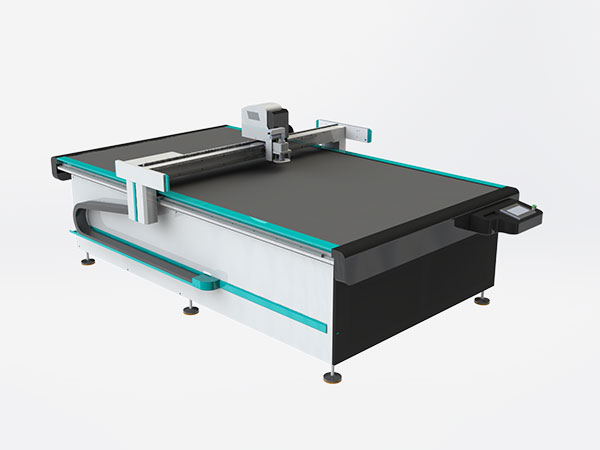

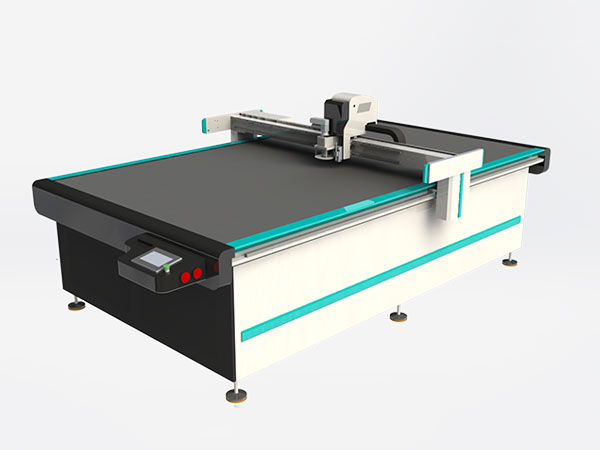

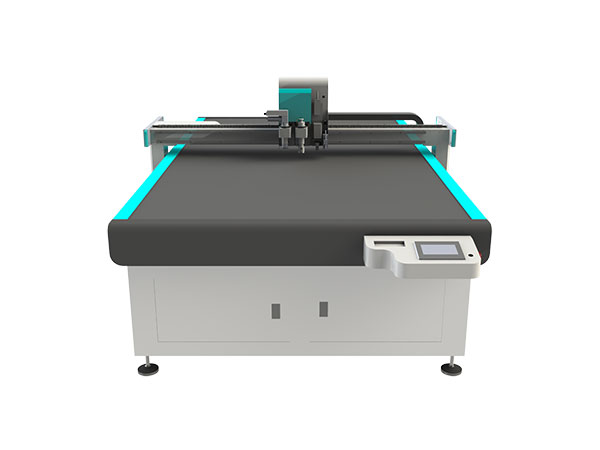

D2516
※Ruida control system
※Electric Oscillating Tool( Use DORNA Brand Servo motor)
※Delta Brand 750,400,100,100W motor and driver
※China VELLPHA brand reducer
※China made square rails 20 for Y axis ,15 for X and Z axis
※Fixed aluminum profile and Import felt
※2.2kw*3 Air-cooling pump
※Red light positioning
D2516 Digital Cutting Machine Application industry
Digital CNC Cutting Machine is widely used in cutting many kinds of composites. Mainly for the intelligent cutting of special-shaped graphics of non-metallic granular materials, it can be fully cut, half-folded and quickly solved, milling, punching, marking and other processes, and special-shaped picture defects can improve production efficiency and reduce labor costs; it can reduce the effect of artificial synthesis. Help users to complete high-quality effects faster, more stable, and more creatively in the creative process, increase user market grab, and more market expectations.
D2516 Digital Cutting Machine configuration and parameters
Model | D2516 |
Control System and software | Ruida control system |

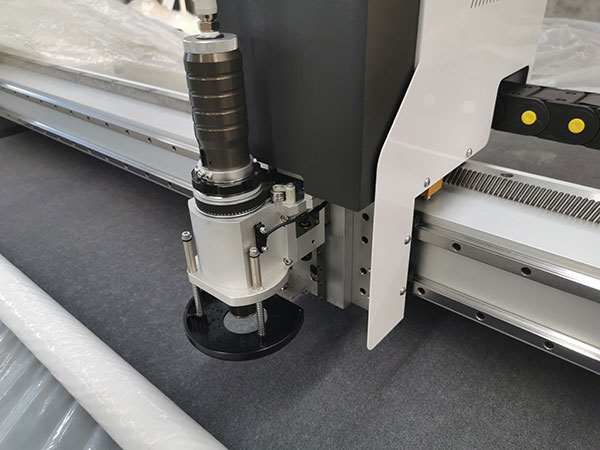

Oscillate knife head | Electric Oscillating Tool,China Brand ( Use DORNA Brand Servo motor) |
Working range | 1600*2500*80mm（ Optional size :1216 ,2518 ,2520,2522,3022 ） |
Feeding Height | 50mm |
Max Traveling Speed | 1300mm/s |
Max Cutting Speed | 50-1000mm/s |
Max Cutting thickness | 45mm |
Cut minimum circle diameter | 2-5mm |
Cutting precision | ±0.1 |
Repeat accuracy | ±0.05 |
X/Y/Z/W Axis Motor and driver | Delta Brand 750,400,100,100W |

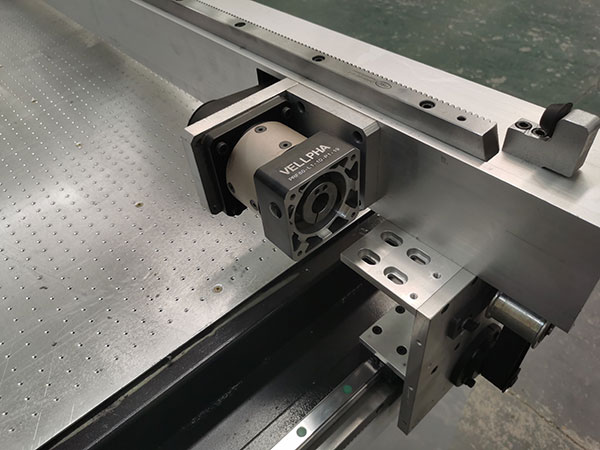

Reducer | China VELLPHA brand reducer (X and Y axis) |

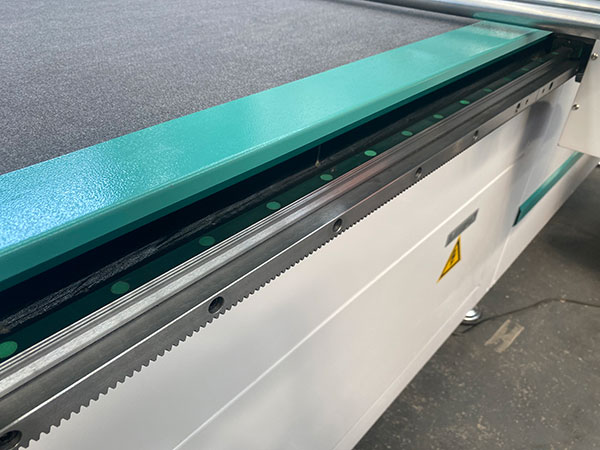

X, Y Axis structure | 1.5M helical rack |
X Y Z Axis Square rails | China made square rails 20 for Y axis ,15 for X and Z axis |
Platform structure | Fixed Aluminum profile |
Mesa of conveying | Import felt |
Vacuum Pump | 2.2kw*3 |
Z Axis Structure | Original Taiwan TBI ball screw |
Positioning way | Red light positioning |
Electric parts | China brand CHINT |
Transmission distance | 5m |
Knife thickness | 0.63 |
Read file format | Plt、Dxf、AI、EPS |
Data interface | Nwtwork Port |
Machine Voltage | 1200KG |
Machine Power | 9.0KW |
Machine size | 2150*3300 |
